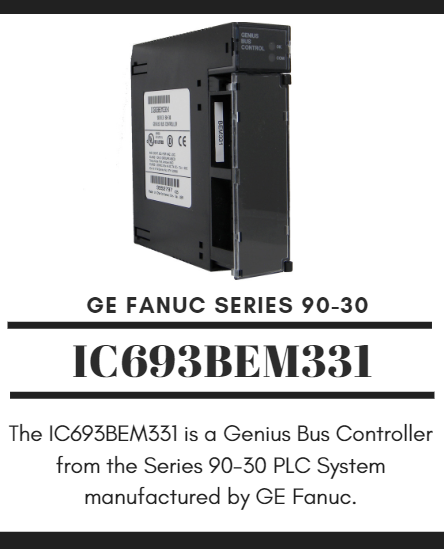

GE FANUC IC693BEM331
Technical Information
Orderinginformation : IC693BEM331
Moduletyper : Series 90-30 PLC module, providing Genius GlobalDatacommunications,Geniusbackground
Quantity per: PLCcommunications and I / O control with up to 31 other devices
Currentconsumption Global data length per GBC
Up to 8 GBCs in a PLC system with release 5.0 or later firmware and Logicmaster 90 software
Transmitted: <300mA at +5VDC
Received:Up to 128 bytes
Up to 128 bytes each from up to 31 other devices
Output data length per GBC
Up to 128 bytes transmitted to each of up to 31 other de- vices
Input data length per GBC
Up to 128 bytes received from each of up to 31 other de- vices
Series 90-30 PLC, memory types for globaldata
%G, %I, %Q, %AI, %AQ, %R,
LEDs:OK, COMM OK
Softwarediagnostics
Status bits, Fault Reporting to Series 90-30 PLC
