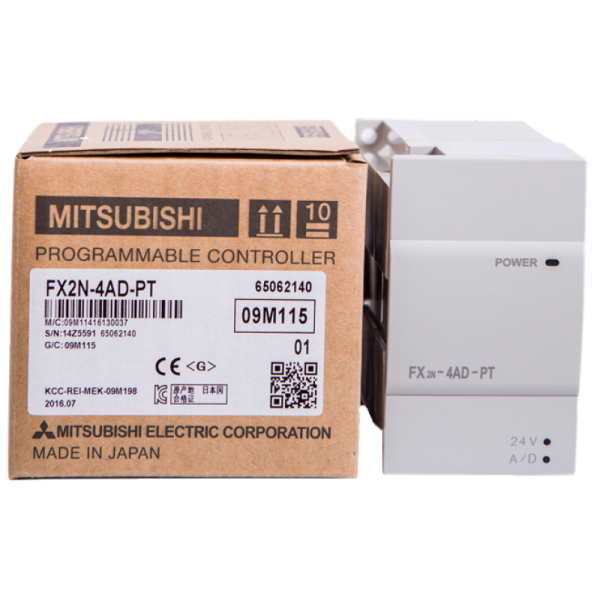

Mitsubishi FX2N-4AD-PT
Manufacturer : Mitsubishi Electric
Product No. : FX2N-4AD-PT
Product type : Input Block I/O Module
Description : Programmable Controllers, Input Block I/O Module
Channel : 4 CH Input
Input types : 3-wire platinum resistance thermometer sensor(s) Pt100
Compensated range : -100 to +600°C / -148 to +1112°F
Resolution : 0.2 to 0.3°C / 0.36 to 0.54°F
Digital Output : -1000 to +6000 (°C) / -1480 to +11120 (°F)
Accuracy : ±1% of full scale
Conversion time : 15ms / 1 channel
No. of Occupied Points : 8 I/O points
Applicable PLC : FX1N / FX2N / FX2NC / FX3U
Certifications : CE, UL/cUL
Dimensions (HxWxD), approx : 9cm x 5.5cm x 8.7cm
Product No. : FX2N-4AD-PT
Product type : Input Block I/O Module
Description : Programmable Controllers, Input Block I/O Module
Channel : 4 CH Input
Input types : 3-wire platinum resistance thermometer sensor(s) Pt100
Compensated range : -100 to +600°C / -148 to +1112°F
Resolution : 0.2 to 0.3°C / 0.36 to 0.54°F
Digital Output : -1000 to +6000 (°C) / -1480 to +11120 (°F)
Accuracy : ±1% of full scale
Conversion time : 15ms / 1 channel
No. of Occupied Points : 8 I/O points
Applicable PLC : FX1N / FX2N / FX2NC / FX3U
Certifications : CE, UL/cUL
Dimensions (HxWxD), approx : 9cm x 5.5cm x 8.7cm
** اين محصول نو و در بسته بندي كارخانه ميتسوبيشي ميباشد.
